GitHub Webhook-Based Approvals Tutorial

Learn how to configure GitHub webhook-based approvals in your Armory CD-as-a-Service app deployment process.

Objectives

This tutorial shows you how to configure webhook-based approvals using GitHub.

This tutorial assumes you have completed the Deploy a Demo App Tutorial guide. You will use the same docs-cdaas-demo repo that you forked and cloned as part of that tutorial.

Before you begin

Create credentials

You need to create credentials that enable GitHub and Armory CD-as-a-Service to connect to each other.

  1. Create a personal access token in GitHub with workflow and admin:repo_hook permissions. See the GitHub Creating a personal access token guide for instructions. Copy the token value for use in the next step.

  2. Create a new secret in the CD-as-a-Service Console for the GitHub token you just created. Go to the Secrets > Secrets screen. Click the New Secret button.

    • Name: github_webhook_token
    • Replacement Value: <github_token_value>

    Replace <github_token_value> with your token value. You use this secret when configuring your webhook in your deployment file.

  3. Create a new Armory CD-as-a-Service credential for your webhook callback to use to authenticate to Armory CD-as-a-Service. In the CD-as-a-Service Console, go to the Access Management > Client Credentials screen. Click the New Credential button. On the Create New Client Credential screen:

    • Name: github_webhooks
    • Preconfigured Scope Group: select Deployments using Spinnaker

    Click Create Credentials. Copy the Client ID and Client Secret values for use in the next step.

  4. Create two GitHub repo secrets in your fork of the docs-cdaas-demo repo. See GitHub’s Creating encrypted secrets for a repository for instructions. Your webhook callback uses the value of these secrets to authenticate to Armory CD-as-a-Service. Create your repo secrets with the following names and values:

    1. Name: CDAAS_CLIENT_ID Value: <github_webhooks_client_id>

      Replace <github_webhooks_client_id> with the value of the Client ID you created in the previous step.

    2. Name: CDAAS_CLIENT_SECRET Value: <github_webhooks_client_secret>

      Replace <github_webhooks_client_secret> with the value of the Client Secret you created in the previous step.

Create the webhook event and workflow

You can create a repository_dispatch webhook event when you want to trigger a workflow from outside of GitHub. Review the following GitHub repository_dispatch docs if you’re unfamiliar with this type of webhook event:

The docs-cdaas-demo repo contains a webhook file called basicPing.yml in the .github/workflows directory. The workflow defined in the file is deliberately simple and for tutorial purposes only. It gets an OAUTH token, extracts the callback URI, and sends a POST request to that callback URI.

name: Basic Ping

on:
  repository_dispatch:
    types: basicPing

jobs:
  respond:
    name: Calls the callback being passed in
    runs-on: ubuntu-18.04
    steps:
      - name: getToken
        id: getToken
        uses: fjogeleit/http-request-action@master
        with:
          url: "https://auth.cloud.armory.io/oauth/token"
          method: "POST"
          customHeaders: '{ "Content-Type": "application/x-www-form-urlencoded" }'
          data: 'audience=https://api.cloud.armory.io&grant_type=client_credentials&client_id=${{ secrets.CDAAS_CLIENT_ID }}&client_secret=${{ secrets.CDAAS_CLIENT_SECRET }}'
      - name: callCallback
        id: callCallback
        uses: fjogeleit/http-request-action@master
        with:
          url: ${{ github.event.client_payload.callbackUri }}
          method: 'POST'
          bearerToken: ${{ fromJSON(steps.getToken.outputs.response).access_token }}
          customHeaders: '{ "Content-Type": "application/json" }'
          data: '{ "success": true, "mdMessage": "Webhook was successful: ${{ github.event.client_payload.callbackUri }}" }'
      - name: show http response
        run: echo ${{ steps.callCallback.outputs.response }}

Note:

  • on.repository_dispatch.types: User-supplied event type name. You use this name in the payload when you call this webhook event from Armory CD-as-a-Service.

  • The getToken step fetches an OAUTH token from Armory CD-as-a-Service. The format for this API call is defined in Retrieve an OAUTH token to use in your callback. The callback needs this OAUTH token to authenticate with Armory CD-as-a-Service.

    • In the data payload, you use the CDAAS_CLIENT_ID and CDAAS_CLIENT_SECRET GitHub repo secrets you created in the Create credentials section.
  • The callCallback step sends request with workflow results to Armory CD-as-a-Service. The format for this API call is defined in Callback format.

    • url: GitHub extracts the callbackUri from the HTTP Request that Armory CD-as-a-Service sent.
    • method: Rest API method is always POST
    • bearerToken: GitHub extracts the access_token value from the getToken step’s HTTP Response and inserts it here.
    • customHeaders: this is always { "Content-Type": "application/json" }
    • data: this JSON payload must contain a "true" or "false" value for "success". The "mdMessage" value should be user-friendly and meaningful.

Configure the webhook in your deployment file

The docs-cdaas-demo repo contains a second deployment file called deploy-webhook.yml in the root directory. The webhooks section is at the bottom of the file.

The uriTemplate uses secrets instead of hardcoding the URI. If you don’t want to create secrets, be sure to change to uriTemplete to use your GitHub org and repo. To create secrets using the CD-as-a-Service Console, go to Secrets > Secrets and create two new secrets:

  1. Name: github_org; Value: the name of the GitHub org into which you forked the docs-cdaas-demo repo. This is either your business org, like ‘armory’, or your GitHub username.
  2. Name: github_repo; Value: the name of the GitHub repo into which you forked the docs-cdaas-demo repo. This is most likely docs-cdaas-demo.

webhooks:
  - name: basicPing
    method: POST
    # replace this with the URI for your repo if you don't create secrets
    uriTemplate: https://api.github.com/repos/{{secrets.github_org}}/{{secrets.github_repo}}/dispatches
    networkMode: direct
    headers:
      - key: Authorization
        # The secret name must match the Armory CD-as-a-Service secret name for your GitHub access token
        value: token  {{secrets.github_webhook_token}}
      - key: Content-Type
        value: application/json
    bodyTemplate:
      inline: >-
        {
        "event_type": "basicPing",
        "client_payload": {
            "callbackUri": "{{armory.callbackUri}}/callback"
            }
        }
    retryCount: 0

Note:

  • name: User-supplied name, in this tutorial basicPing; you use this name when you insert configuration to call this webhook.

  • uriTemplate: the format for this URI is in GitHub’s Create a repository dispatch event. Since this is a template, you can insert secrets in place of hardcoding parts of the URI.

  • networkMode: direct because the webhook endpoint is accessible via the internet

  • headers: For the Authorization value, use token #{{secrets.github_webhook_token}}. The secret name matches the name you used in the Create credentials section.

  • bodyTemplate.inline: The format for this is defined in GitHub’s Create a repository dispatch event.

    • The event_type must match the on.repository_dispatch.types value in the basicPing.yml file.
    • The items in the client_payload dictionary depend on the functionality within the basicPing.yml file. The basicPing workflow looks for callbackUri. The callbackUri value is always {{armory.callbackUri}}/callback. Armory CD-as-a-Service dynamically generates and fills in armory.callbackUri at runtime.

Call the webhook in your deployment process

The deploy-webhook.yml calls the basicPing webhook in two places. The first is in a beforeDeployment constraint in the prod-us and prod-eu targets.

targets:
...
prod-us:
  account: demo-rna-prod-us-cluster
  namespace: demo-prod-us
  strategy: mycanary
  constraints:
    dependsOn: ["staging"]
    beforeDeployment:
      - pause:
          untilApproved: true
      - runWebhook:
          name: basicPing
prod-eu:
  account: demo-rna-prod-eu-cluster
  namespace: demo-prod-eu
  strategy: myBlueGreen
  constraints:
    dependsOn: ["staging"]
    beforeDeployment:
      - runWebhook:
          name: basicPing

Deployment to prod-us requires manual approval and a successful webhook result, whereas deployment to prod-eu only requires a successful result.

The second place that deployment calls the webhook is within a canary strategy configuration.

strategies:
  mycanary:
    canary:
      steps:
        - setWeight:
            weight: 25
        - analysis:
            interval: 7
            units: seconds
            numberOfJudgmentRuns: 1
            rollBackMode: manual
            rollForwardMode: automatic
            queries:
              - avgCPUUsage-pass
        - runWebhook:
            name: basicPing
        - setWeight:
            weight: 50
        - analysis:
            interval: 7
            units: seconds
            numberOfJudgmentRuns: 3
            rollBackMode: manual
            rollForwardMode: manual
            queries:
              - avgCPUUsage-fail
              - avgCPUUsage-pass
        - setWeight:
            weight: 100

Deploy your updated process

Navigate to your docs-cdaas-demo directory. Make sure you have logged in using the CLI (armory login).

Deploy the using the deploy-webhook.yml file.

armory deploy start -f deploy-webhook.yml

Output is similar to:

[2022-04-28T18:09:31-05:00] Deployment ID: 8c9e77fa-2543-4cdc-b12f-86c095974c7a
[2022-04-28T18:09:31-05:00] See the deployment status UI: https://console.cloud.armory.io/deployments/pipeline/8c9e77fa-2543-4cdc-b12f-86c095974c7a?environmentId=a8906e61-2388-4daa-b38e-4339390b9447

You can check deployment status by accessing the URL included in the output.

Deployment to prod-us requires manual approval but deployment to prod-eu is based on the result of the basicPing webhook.

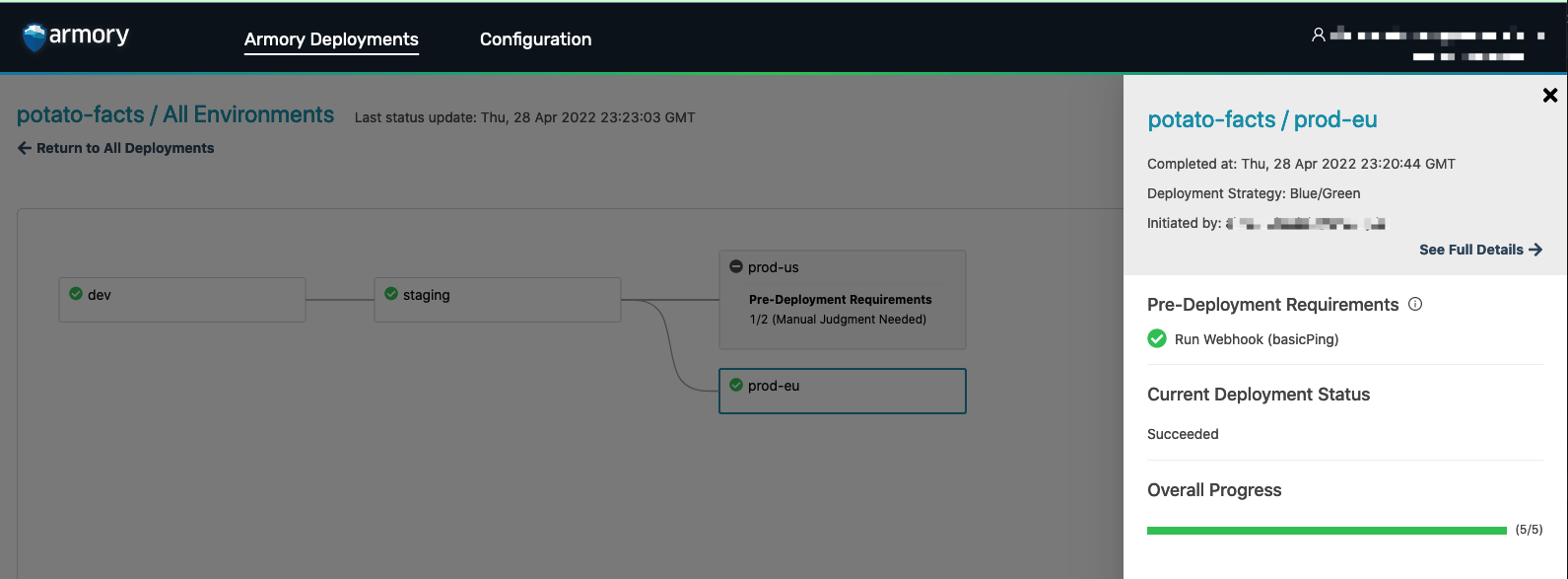

BeforeDeployment webhook success

The basicPing webhook succeeded so deployment continued.

To see what webhook failure looks like, go into your GitHub repo and change the basicPing.yml file line 28 like this:

name: Basic Ping Webhook Callback

on:
  repository_dispatch:
    types: basicPing

jobs:
  respond:
    name: Calls the callback being passed in
    runs-on: ubuntu-18.04
    steps:
      - name: getToken
        id: getToken
        uses: fjogeleit/http-request-action@master
        with:
          url: "https://auth.cloud.armory.io/oauth/token"
          method: "POST"
          customHeaders: '{ "Content-Type": "application/x-www-form-urlencoded" }'
          data: 'audience=https://api.cloud.armory.io&grant_type=client_credentials&client_id=${{ secrets.CDAAS_CLIENT_ID }}&client_secret=${{ secrets.CDAAS_CLIENT_SECRET }}'
      - name: callCallback
        id: callCallback
        uses: fjogeleit/http-request-action@master
        with:
          url: ${{ github.event.client_payload.callbackUri }}
          method: 'POST'
          bearerToken: ${{ fromJSON(steps.getToken.outputs.response).access_token }}
          customHeaders: '{ "Content-Type": "application/json" }'
          data: '{ "success": false, "mdMessage": "Webhook FAILURE: ${{ github.event.client_payload.callbackUri }}" }'
      - name: show http response
        run: echo ${{ steps.callCallback.outputs.response }}

Commit the change.

Make sure to manually approve the prod-us deployment in the CD-as-a-Service Console before you redeploy.

Deploy by running armory start deploy -f deploy-webhook.yml. Then check deployment status by accessing the URL included in the output.

BeforeDeployment webhook failure

The basicPing webhook failed.

Troubleshooting

Webhook process runs for a long time

Check your repo to see if the action is also still running.

  • If the action hasn’t started, the call to your action wasn’t successful. The UI should display an error message with a non-200 HTTP return code when the webhook process times out. In the meantime, check your deployment file to make sure the following fields have the correct values:

    • uriTemplate
    • networkMode and optionally agentIdentifier
    • event_type in the inline body template

    If you find an error, cancel your deployment before fixing and redeploying.

  • If your GitHub action workflow has completed, your workflow failed to trigger the callback to Armory CD-as-a-Service. Check GitHub’s Monitoring and troubleshooting workflows for troubleshooting suggestions.

401 status code

In the UI, you see a Received non-200 status code: 401 error when you pass invalid credentials. Check that your GitHub access token is valid.

404 status code

404 Not Found: [{"message":"Not Found","documentation_url":"https://docs.github.com/rest"}]

This is a confusing error that occurs when you do not send authorization credentials in the header. Make sure you include your GitHub token in the request header.

headers:
- key: Authorization
  value: token  {{secrets.github_webhook_token}}
